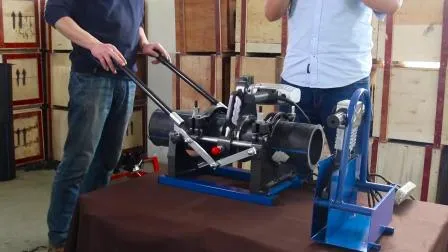

160mm 2 Clamps Manual Types HDPE Pipe Fusion Welding Machine for PE PP PVDF Pipes/Butt Fusion Welding Machine/HDPE Plastic Pipe Welding Machine/HDPE Butt Welder

160mm 2 Clamps Manual Types HDPE Pipe Fusion Welding Machine for PE PP PVDF Pipes/Butt Fusion Welding Machine/HDPE Plastic Pipe Welding Machine/HDPE Butt Welder

160mm 2 Clamps Manual Types HDPE Pipe Fusion Welding Machine for PE PP PVDF Pipes/Butt Fusion Welding Machine/HDPE Plast
SHARE

Description

Basic Info.
Model NO. SDP160M2
Heating Plate Max. Temp. 270 Degree Centigrade
Temp. Deviation in Surface Less Than or Equal to 5 Degree Centigade
Volume 0.15cbm
Wooden Box 1 Wooden Box
Color Blue;Black
Free Parts Yes
Operate Video Yes
Inventory Yes
Certification CE, ISO, SGS
Total Power 1.71kw
Planning Tool Power 0.71kw
Welding Range(mm) 40.50.63.75.90.110.125.140.160
Weight 40kg
Working Voltage 220V 50Hz
Warranty 1 Year
Transport Package Wooden Box
Specification ISO CE
Trademark SUDA
Origin China(Mainland)
HS Code 8515290000
Production Capacity 2000sets/Year
Product Description

160mm 2 Clamps Manual Types HDPE Pipe Fusion Welding Machine for PE PP PVDF Pipes/Butt Fusion Welding Machine/HDPE Plastic Pipe Welding Machine/HDPE Butt Welder

160mm 2 Clamps Manual Types HDPE Pipe Fusion Welding Machine for PE PP PVDF Pipes/Butt Fusion Welding Machine/HDPE Plastic Pipe Welding Machine/HDPE Butt Welder

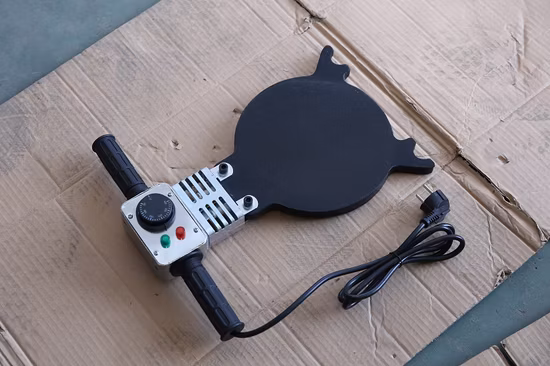

Brief: Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.Be made of Aluminum material.Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.Feature:1. Removable PTFE coated heating plate with separate temperature control system.2. Electric Planning Tool with reversible double cutting edge blades.3. Hydraulic Unit provides welding machine with compressing power.4. Be made of Aluminum material.5. Low starting pressure ensures reliable welding quality of small pipes.6. Temperature Controller and Timer, easy to know the exact time and temperature.

SDP160M4 Specification

ModelSDP160M2
Welding Range(mm)40 50 63 75 90 110 125 140 160
Heating Plate Max.Temp.270ºC
Temp.Deviation in Surface≤±5ºC
Working Voltage220V/110V 50/60HZ
Heating Plate Power1.0KW
Planning Tool Power0.71KW
Total Power1.71KW
Weight40KG
PackingWooden Box1 Wooden Box
Volume0.15CBM

Advantage
1. Certificate:We provide CE and ISO certification and official test reports for each machine.2. Guarrantee Period: 16-24 months free warranty,life Time Guarrantee.3. Voltage: 220v or 380v is normal voltage, can customized 110v, 240v, 415v, 440v or according requirements.4. Mode of transportation: Mostly by ship, less than 100kg, recommended by air or express.We can also cooperate with the shipping companies that they can help finish the custom clearance, even if you do not have import rights, you can buy.5. Delivery time: 1~5sets: 2~3workdays; 6~10sets: 5~7workdays; Above10sets: 8~10workdays, by the way, we have stocks for many products, these products can usually be delivered within 24~48 hours. 6. Free Spare Parts: 1pc metal tool box, 1pc temperature sensor, 1pc screw driver, 1pc spanner, 2pcs blades, 2pcs fasten screws.7. Electronic accessory:Electronic accessory of well-known brands will ensure the reliability of the machine. More importantly, if you need urgent repairs, you can buy these accessories faster in the local.
More Pictures

160mm 2 Clamps Manual Types HDPE Pipe Fusion Welding Machine for PE PP PVDF Pipes/Butt Fusion Welding Machine/HDPE Plastic Pipe Welding Machine/HDPE Butt Welder


160mm 2 Clamps Manual Types HDPE Pipe Fusion Welding Machine for PE PP PVDF Pipes/Butt Fusion Welding Machine/HDPE Plastic Pipe Welding Machine/HDPE Butt Welder


Produce Pictures
Ready To Ship

160mm 2 Clamps Manual Types HDPE Pipe Fusion Welding Machine for PE PP PVDF Pipes/Butt Fusion Welding Machine/HDPE Plastic Pipe Welding Machine/HDPE Butt Welder


Products We Can Produce
Hand Push Butt Fusion Welding Machine we produce as follows:
1. Removable PTFE coated heating plate with separate temperature control system.2. Electric Planning Tool with reversible double cutting edge blades.3. Hydraulic Unit provides welding machine with compressing power.4. Be made of Aluminum material.
Exhibition
Our Services
1.About sample: If you have any need, don't hesitate to contact us, we will promptly provide samples to you.
2.About after-sales service : Our products have one year warranty period , so if it has quality problems within one year , you can find our warranty .
3.We can customize product according to the requirements of customers.
4.Your inquiry related to our product or price will be replied in 24 hours.
5.Protection of your sales area, ideas of design and all your private information.
FAQ
1 How is your company's logistics service? Lead time?-Close to Shanghai and Ningbo ports, a large number of stocks guarantee delivery within 2-5 days.
2 How about after-sales service?-We have professional technical consultants to ensure that your problems can be resolved within 24 hours.
3 Does it have international certification?-We can provide CE certification.
4 Is the product delicate?-Warranty period: 14-16 months.
5 Is it possible to provide free accessories?-Free accessories/spare parts: 2 shapes, 2 cameras, 1 temperature sensor, 1 ignition
Accessories

160mm 2 Clamps Manual Types HDPE Pipe Fusion Welding Machine for PE PP PVDF Pipes/Butt Fusion Welding Machine/HDPE Plastic Pipe Welding Machine/HDPE Butt Welder
